99-00 Civic Hatch/Coupe/Sedan headlight duct

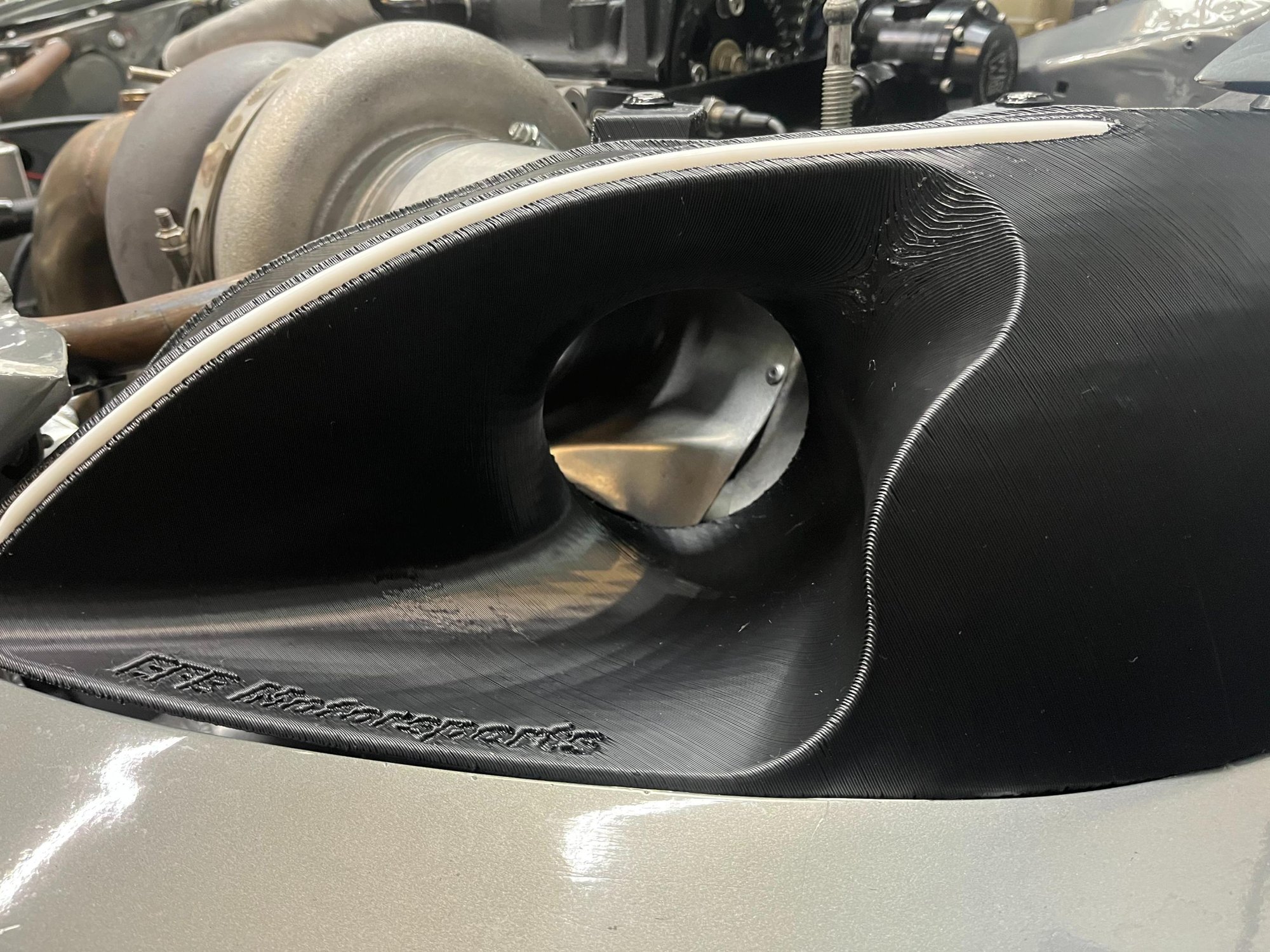

Decrease your intake charge temperature with our 3D printed intake duct that replaces the factory headlamp. The duct features an integrated headlamp with high beam functionality, as well as a running light.
Our headlight duct is made from ABS unlike other offerings that utilize hobby grade materials that are more prone to heat deflection, like PLA or PETG. Many OEM's utilize this material for parts that reside within engine bays due to the high glass transition temperature of ABS. However, ABS is not UV resistant. Therefore the duct should be painted if your vehicle is normally stored outdoors and exposed to the harsh sunlight on a regular basis.
The buyer is responsible for assembly and wiring. Electrical wiring and soldering skills are required. A wiring diagram will be provided via email with your purchase. All electrical components are pre-tested and confirmed to be functional prior to shipment.
3 Options are available:

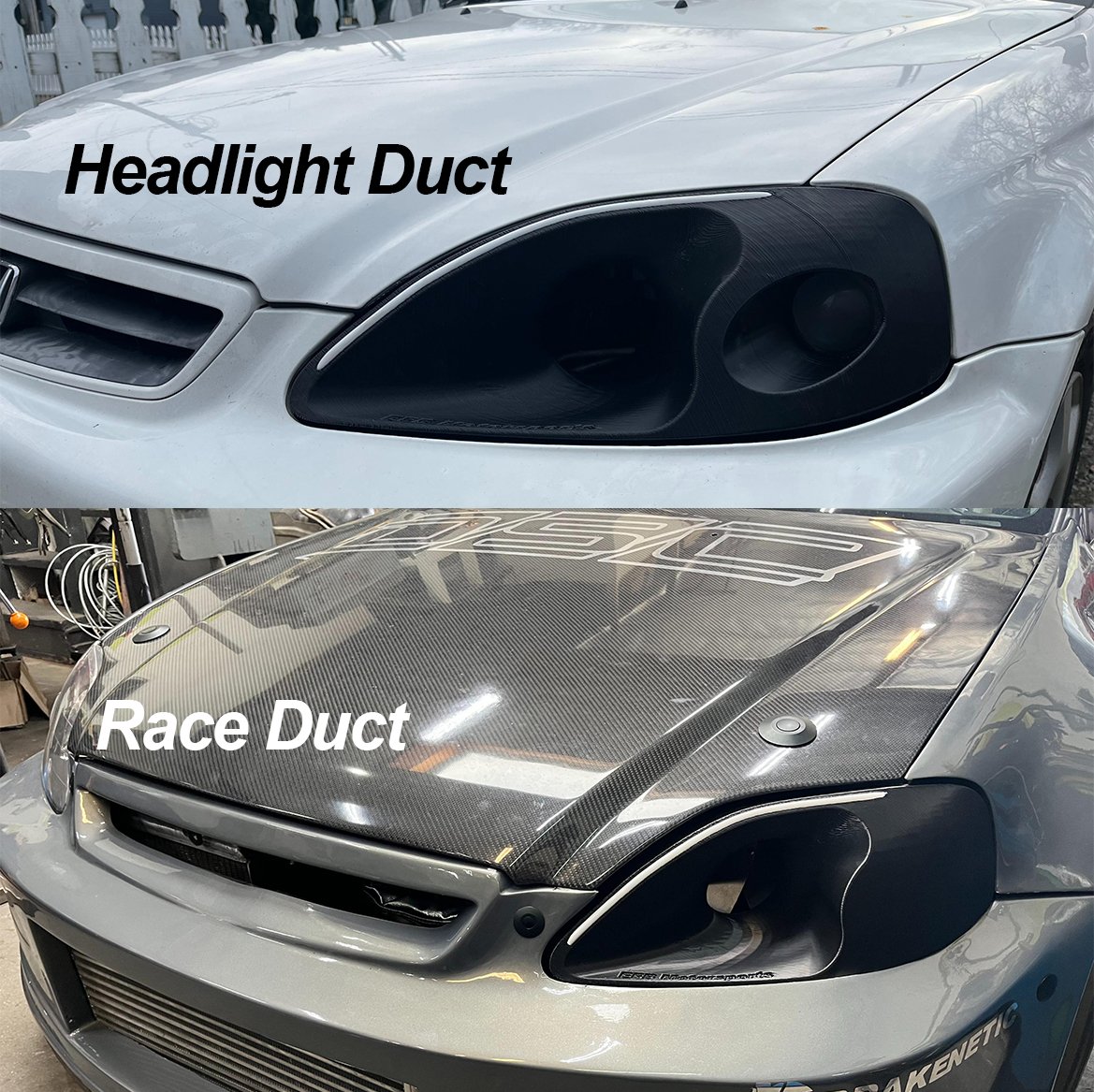

1. Full Headlight duct with DRL Led Strip and Projector
Included parts
1x EK Headlight Intake duct
1x LED Projector headlamp assembly (6000k)
1x day time running light/turn signal (dependent on user wiring methodology)
1x 4in beaded outlet adapter
1x M6 nut
1x H4 Male pig tail harness
1x Diode (required for hi/low functionality)
2. Headlight duct with Projector and No DRL
1x EK Headlight Intake duct
1x LED Projector headlamp assembly (6000k)
1x 4in beaded outlet adapter
1x M6 nut
1x H4 Male pig tail harness
1x Diode (required for hi/low functionality)
3. Race duct (Induction only)
1x EK Full race intake duct
1x day time running light/turn signal (dependent on user wiring methodology)
1x 4in beaded outlet adapter
1x M6 nut
(optional) translucent material is a special order option - DM us on IG or email us for availability.
Items needed for self wiring:
1x H4 Male pig tail harness
Wire cutters
Wire stripper
Crimp tool
Scissors
Heat shrink assortment
16-22 AWG male/female crimp connectors
Soldering Iron
Solder
Additional 6" of 18 AWG wire
Typically all orders are made on demand, please expect 1-4 weeks for us to process and ship your order. Please specify in the notes at checkout if you would like signature confirmation for your delivery.
If shipping is not available to your region, DM or email us. We will see if we can ship to you.
Disclaimer - This product is not DOT Approved and is for Off-Road Use Only.
By purchasing any aftermarket performance product, the customer takes full responsibility for any use, and/or misuse of the product and agrees that EFB Motorsports or www.EFBMotorsports.com holds no responsibility for any consequences, legal, or other, of such use and/or misuse.
All performance modifications and installations are at the customer's own risk. EFB Motorsports holds no responsibility either implied or otherwise for mechanical, electrical or other failure when using any aftermarket performance products. Items sold for off-road use only are illegal to use on public roads, in most states and provinces, even if your state does not perform testing. These are intended for racing vehicles which may never be used on a public road.
NO EXCHANGES ARE OFFERED FOR MISPLACED ORDERS, PLEASE ENSURE YOU SELECT THE CORRECT SIDE/VARIANT AT CHECKOUT.
